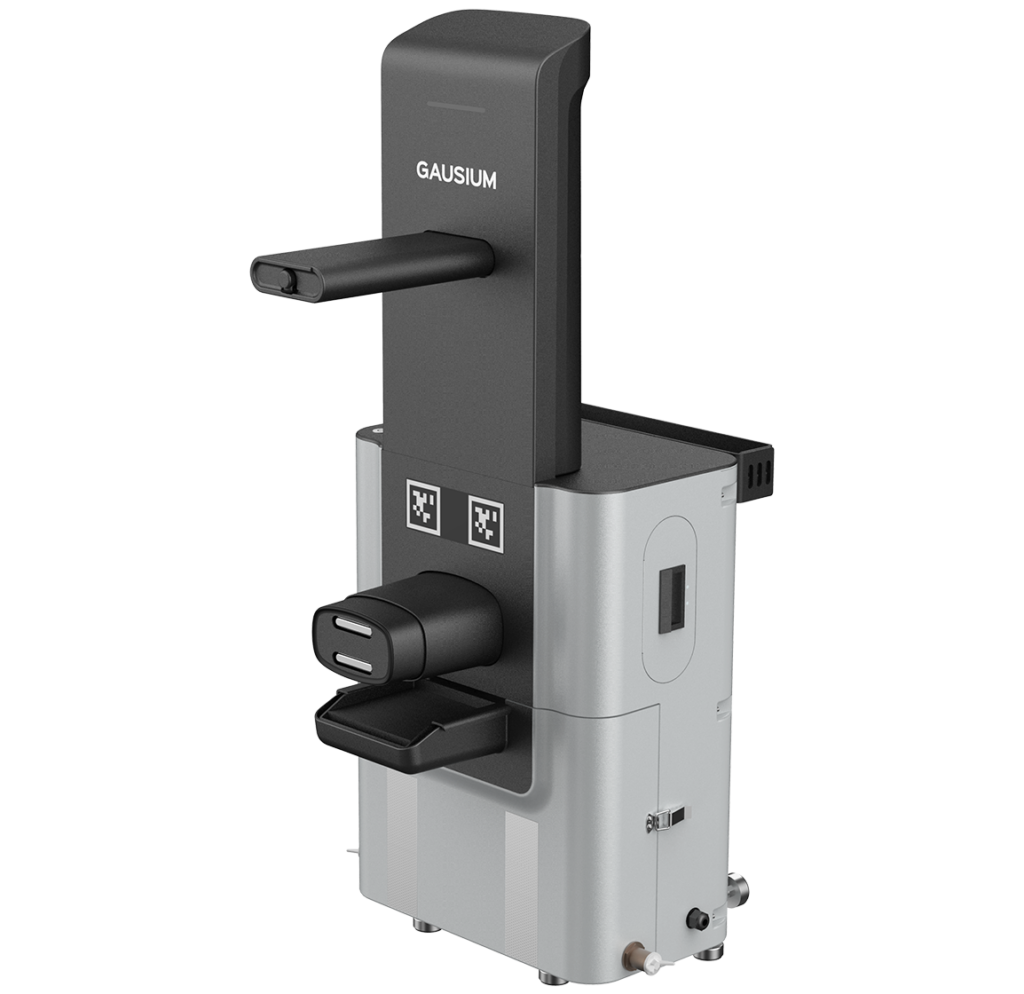

WS-03-S is the workstation designed to pair with Phantas. Engineered to maximize uptime and minimize human intervention, the WS-03-S allows the robot to automatically perform essential tasks such as power charging, water refilling, and discharge by simply docking with the workstation. Its versatility is further enhanced by features such as automatic cleaning component rinsing and an optional mobile water tank for environments where water access is unavailable.
| Length | 510 mm |
|---|---|
| Width | 558 mm |
| Height | 702 mm |
| Weight | 23 kg |
| Electrical Input | 100-240 VAC , ~8.1 A , 50-60 Hz |
| Electrical Output | 29.4 VDC , 25 A |
| Operating Temperature | 1~45 ℃ |
| Operating Temperature | 20% ~ 75% RH |
| Storage Temperature | -40 ~ 45 °C |
| Storage Humidity | 20%~93% RH |
| Communication Method | LoRa |
| Installation Requirements | Ground-fixed or back-fixed against the wall; keep a minimum 2.0 m/6.6 ft of free space in front of the workstation, a minimum of 0.6 m/ 2.0 ft of free space to the right and left of centre of the workstation. |
| External Dependencies | Water source, floor drain, power supply |
| Water Pressure | 0.15 ~ 0.6 MPa |
We’d be happy to provide you with a Quote for a brand new Workstation WS-03-S including all the accessories you’re after and delivery costs!
Let us know your contact details and we’ll be in contact really soon.
